FIXED IND 10UH 1.58A 140MOHM SMD

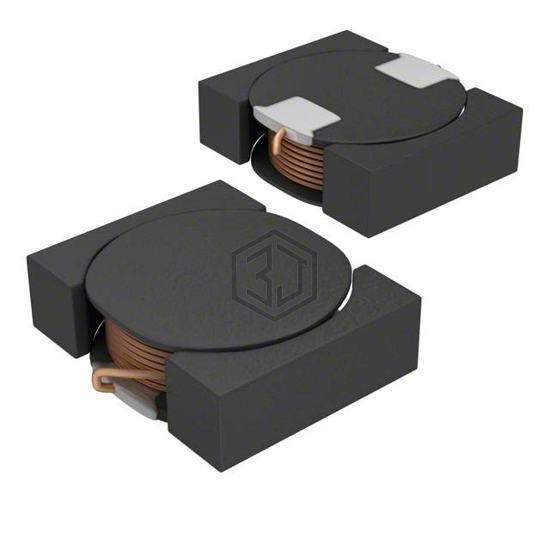

VLF504015MT-100M-CA is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 10UH 1.58A 140MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.58 A.
In Stock: 757
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.58 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.157" W (5.00mm x 4.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for VLF504015MT-100M-CA and get a quote within 24 hours.
