FIXED IND 1.5UH 2.96A 43MOHM SMD

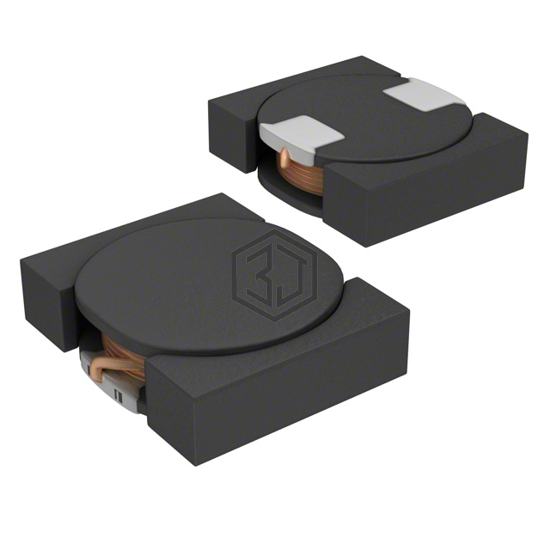

VLF403210MT-1R5N is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.5UH 2.96A 43MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 2.96 A.
In Stock: 957
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.96 A |
| Current - Saturation (Isat) | 1.85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 43mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
