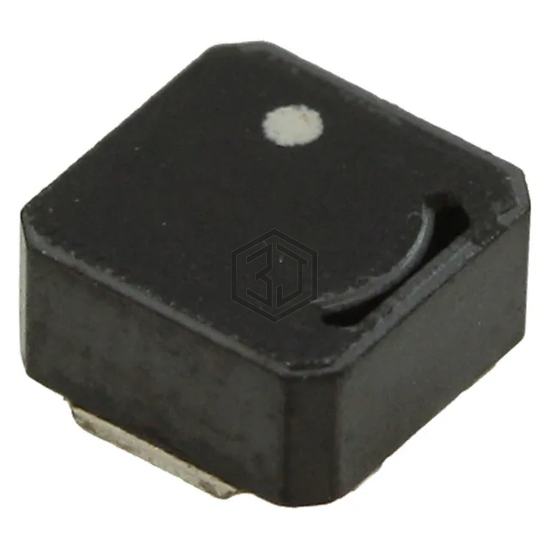

FIXED IND 3.3UH 1.74A 37MOHM SMD
VLCF5028T-3R3N1R7-2 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 3.3UH 1.74A 37MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.74 A.
In Stock: 225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.74 A |
| Current - Saturation (Isat) | 1.74A |
| Shielding | Shielded |
| DC Resistance (DCR) | 37mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for VLCF5028T-3R3N1R7-2 and get a quote within 24 hours.
