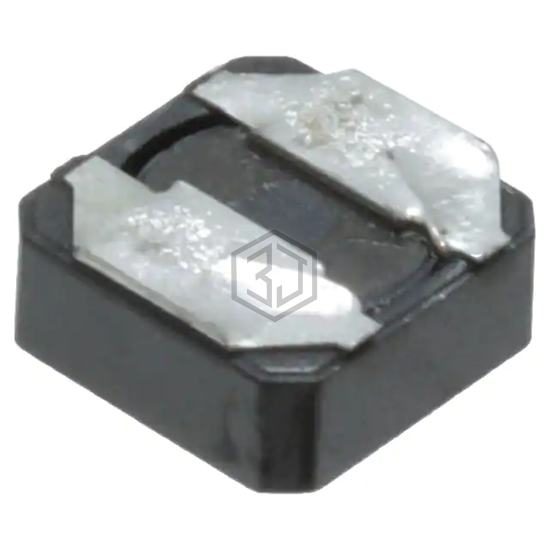

FIXED IND 47UH 400MA 383MOHM SMD
VLCF5024T-470MR40-2 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 47UH 400MA 383MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 400 mA.
In Stock: 390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 383mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for VLCF5024T-470MR40-2 and get a quote within 24 hours.
