FIXED IND 120NH 55A 0.23MOHM SMD

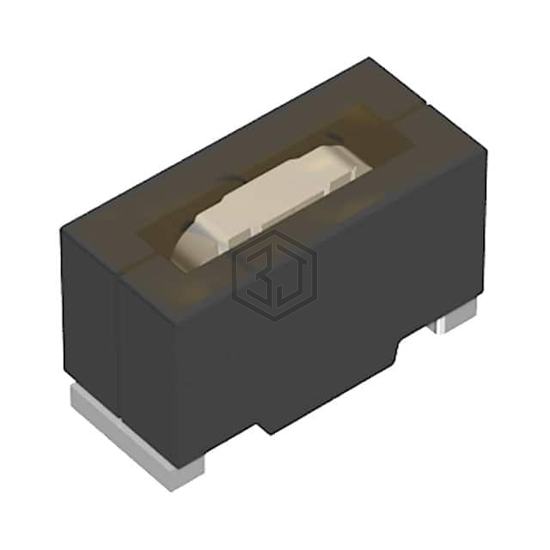

VLBU1024660R12MF is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 120NH 55A 0.23MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 55 A.
In Stock: 952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 55 A |
| Current - Saturation (Isat) | 55A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.23mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.181" W (10.20mm x 4.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for VLBU1024660R12MF and get a quote within 24 hours.
