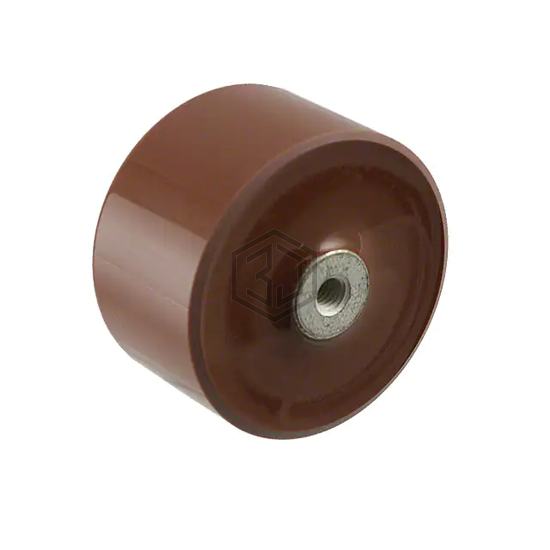

CAP CER 1000PF 20KV Z5T DISK
UHV-224A is a Ceramic Capacitors manufactured by TDK Corporation. CAP CER 1000PF 20KV Z5T DISK. Key specifications: mounting type Requires Holder, operating temperature -30°C ~ 85°C, voltage - rated 20000V (20kV), package / case Disk, Metal Fitting - Threaded.
In Stock: 6,321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 20000V (20kV) |
| Temperature Coefficient | Z5T |
| Operating Temperature | -30°C ~ 85°C |
| Features | High Voltage, Low Dissipation Factor |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Requires Holder |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension | 1.339" Dia x 0.906" L (34.00mm x 23.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | - |
| Lead Style | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PEF220WP10236BH1 | Vishay Beyschlag/Draloric/BC Components | CAP CER 1000PF 20KV R42 DISK | 100% | View |
| 715C20KTD10 | Vishay Beyschlag/Draloric/BC Components | 715C 20KVDC 1000PF 20% N4700 735 | 100% | View |
| PE0140WJ10238BJ1 | Vishay Beyschlag/Draloric/BC Components | CAP CER 1000PF 14KV R85 DISK | 77% | View |
| PD0200WJ10238BH1 | Vishay Beyschlag/Draloric/BC Components | CAP CER 1000PF 14KV R42 DISK | 77% | View |
| PE0140WJ10233BJ1 | Vishay Beyschlag/Draloric/BC Components | CAP CER 1000PF 14KV R85 DISK | 77% | View |
| PE0100WH10238BJ1 | Vishay Beyschlag/Draloric/BC Components | CAP CER 1000PF 13KV R85 DISK | 72% | View |
Submit your RFQ for UHV-224A and get a quote within 24 hours.
