FIXED IND 1.5UH 3.1A 60 MOHM SMD

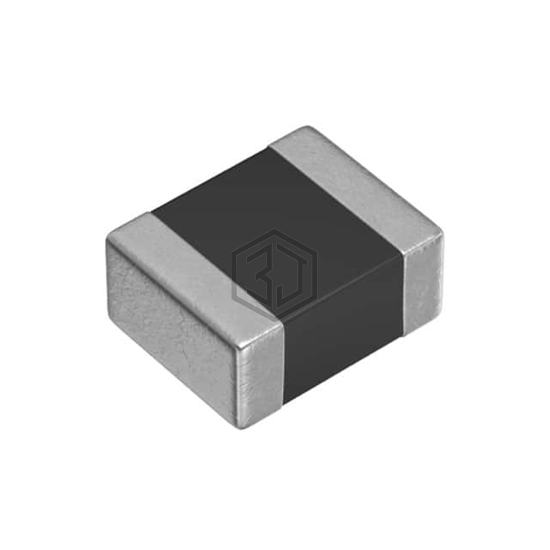

TMS252012ALM-1R5MTAA is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.5UH 3.1A 60 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 3.1 A.
In Stock: 7,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.1 A |
| Current - Saturation (Isat) | 3.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 60mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
