FIXED IND 470NH 20.1A 2.9MOHM SM

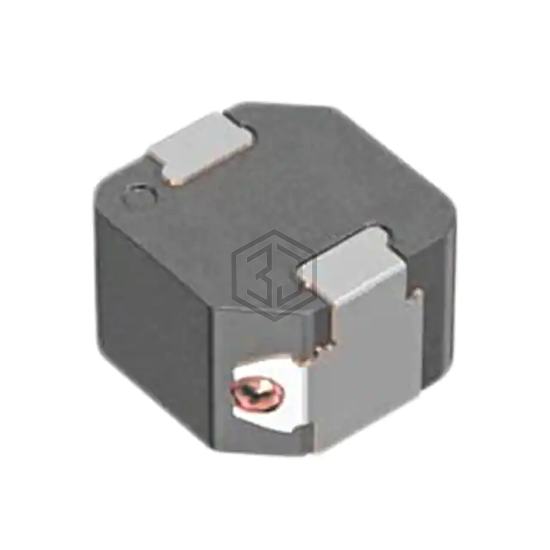

SPM6550T-R47M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 470NH 20.1A 2.9MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, J-Lead, current rating (amps) 20.1 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.1 A |
| Current - Saturation (Isat) | 20.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SPM6550T-R47M and get a quote within 24 hours.
