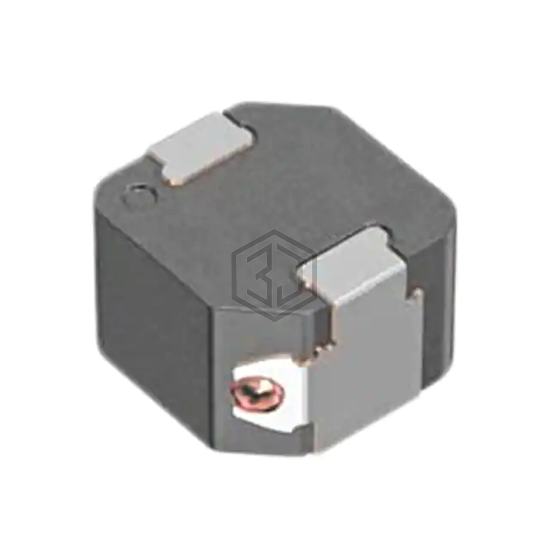

FIXED IND 1.09UH 14.1A 5.2 MOHM
SPM6550T-1R0M100A is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.09UH 14.1A 5.2 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, J-Lead, current rating (amps) 14.1 A.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1.09 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 14.1 A |
| Current - Saturation (Isat) | 15.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
