FIXED IND 500NH 13.2A 4.29 MOHM

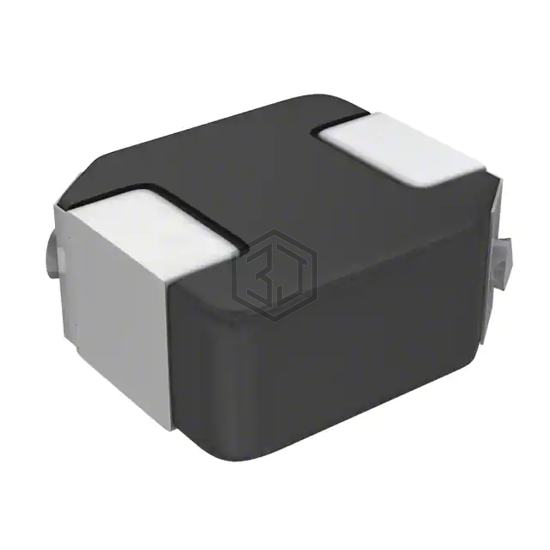

SPM6550CT-R50L is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 500NH 13.2A 4.29 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 13.2 A.
In Stock: 1,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 500 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 13.2 A |
| Current - Saturation (Isat) | 20.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SPM6550CT-R50L and get a quote within 24 hours.
