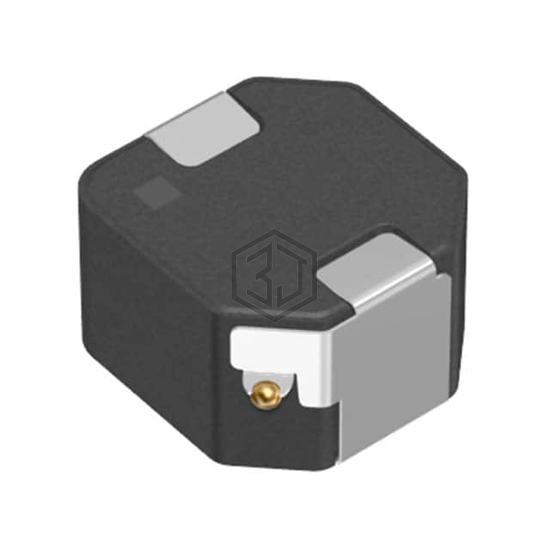

FIXED IND 4.7UH 6.7A 24.2MOHM SM
SPM6545VT-4R7M-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.7UH 6.7A 24.2MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 6.7 A.
In Stock: 305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.7 A |
| Current - Saturation (Isat) | 10.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 24.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for SPM6545VT-4R7M-D and get a quote within 24 hours.
