FIXED IND 250NH 23A 2.31MOHM SMD

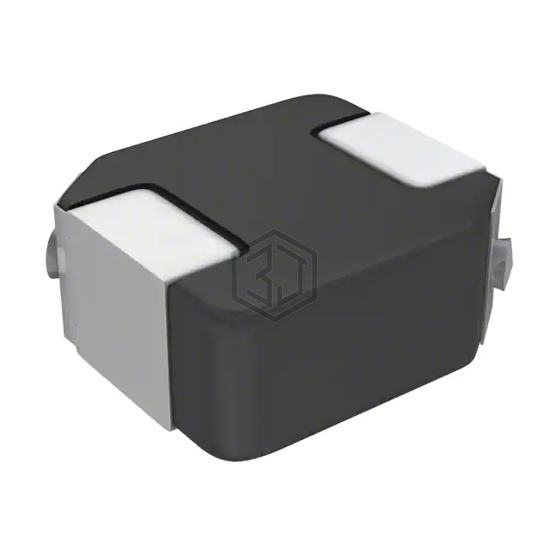

SPM6530T-R25M230 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 250NH 23A 2.31MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 23 A.
In Stock: 62
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 250 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 23 A |
| Current - Saturation (Isat) | 28.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SPM6530T-R25M230 and get a quote within 24 hours.
