FIXED IND 4.7UH 5.6A 39.4MOHM SM

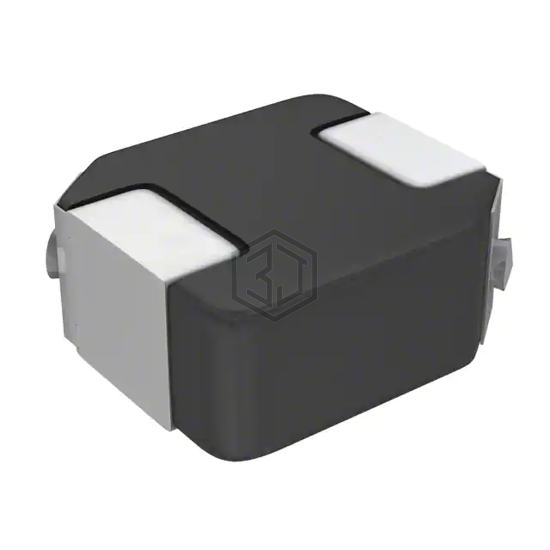

SPM6530T-4R7M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.7UH 5.6A 39.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.6 A.
In Stock: 9,680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.6 A |
| Current - Saturation (Isat) | 6.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 39.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SPM6530T-4R7M and get a quote within 24 hours.
