FIXED IND 470NH 6.1A 19.5MOHM SM

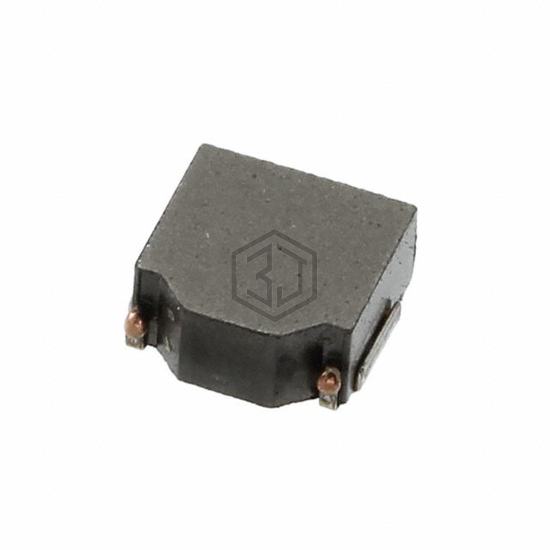

SPM4020T-R47M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 470NH 6.1A 19.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.1 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.1 A |
| Current - Saturation (Isat) | 10.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 19.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SPM4020T-R47M and get a quote within 24 hours.
