FIXED IND 2.2UH 20.2A 3.4MOHM SM

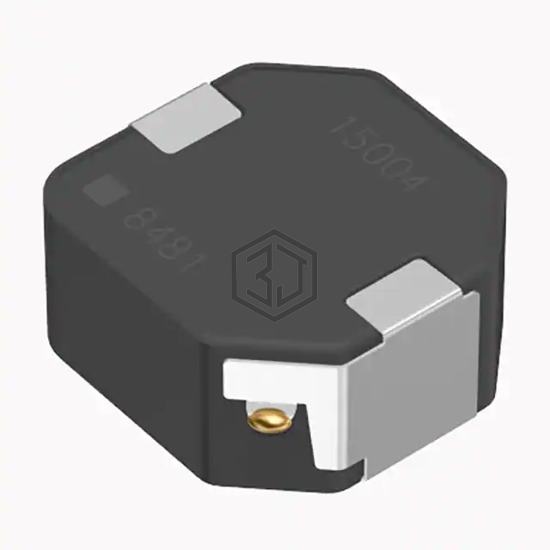

SPM12565VT-2R2M-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.2UH 20.2A 3.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 20.2 A.
In Stock: 3,214
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.2 A |
| Current - Saturation (Isat) | 32.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.492" W (13.00mm x 12.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
