FIXED IND 6.8UH 10.2A 13.3 MOHM

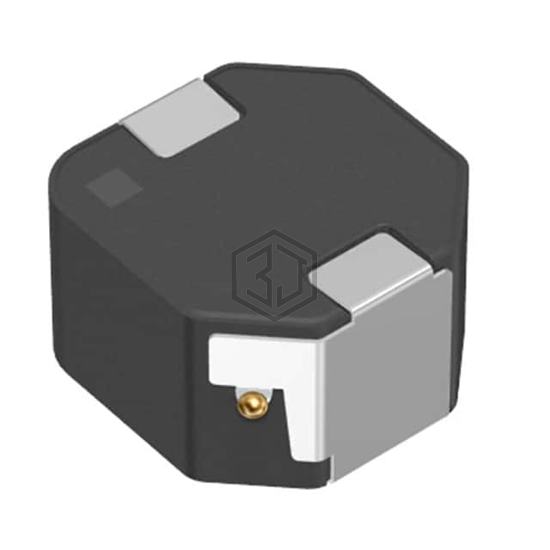

SPM10065VT-6R8M-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 10.2A 13.3 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 10.2 A.
In Stock: 1,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.2 A |
| Current - Saturation (Isat) | 15.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.3mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.394" W (10.50mm x 10.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for SPM10065VT-6R8M-D and get a quote within 24 hours.
