FIXED IND 6.8UH 1.9A 46.8MOHM SM

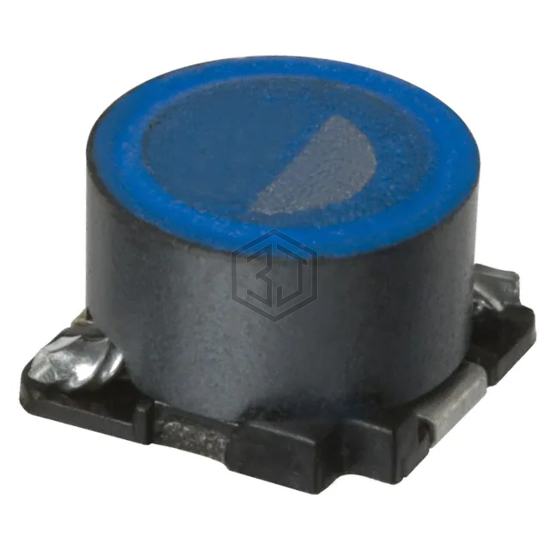

SLF7045T-6R8M1R9-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 1.9A 46.8MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.9 A.
In Stock: 1,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 1.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 46.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SLF7045T-6R8M1R9-H and get a quote within 24 hours.
