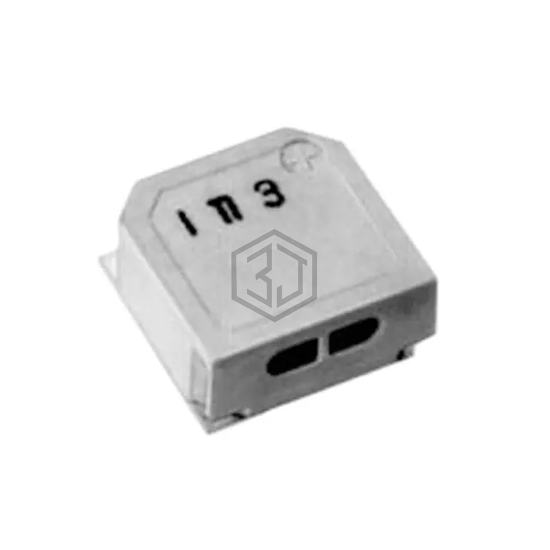

BUZZER MAGNETIC 3V 8.5X8.5MM SMD
SDR08540M3-01 is a Alarms, Buzzers, and Sirens manufactured by TDK Corporation. BUZZER MAGNETIC 3V 8.5X8.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 3 V, current - supply 85mA.
In Stock: 26,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 0 ~ 5V |
| Frequency | 2.67kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 88dB @ 3V, 10cm |
| Current - Supply | 85mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for SDR08540M3-01 and get a quote within 24 hours.
