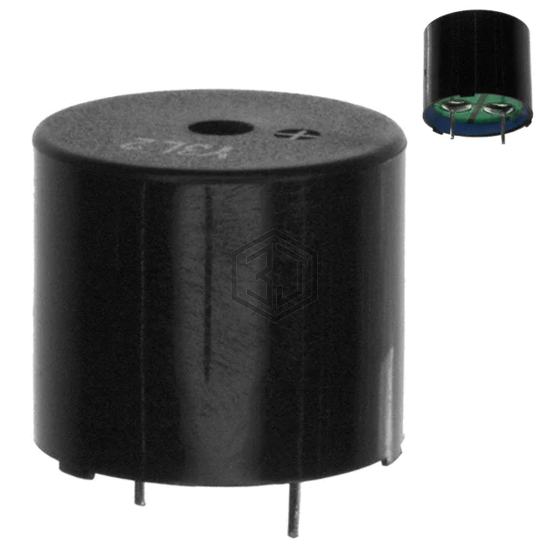

BUZZER MAGNETIC 12V 16MM TH
SD1614TT-B3M is a Alarms, Buzzers, and Sirens manufactured by TDK Corporation. BUZZER MAGNETIC 12V 16MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 12 V, current - supply 100mA.
In Stock: 1,588
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 16V |
| Frequency | 2.048kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 100mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for SD1614TT-B3M and get a quote within 24 hours.
