FIXED IND 6.8UH 2.3A 43.2MOHM SM

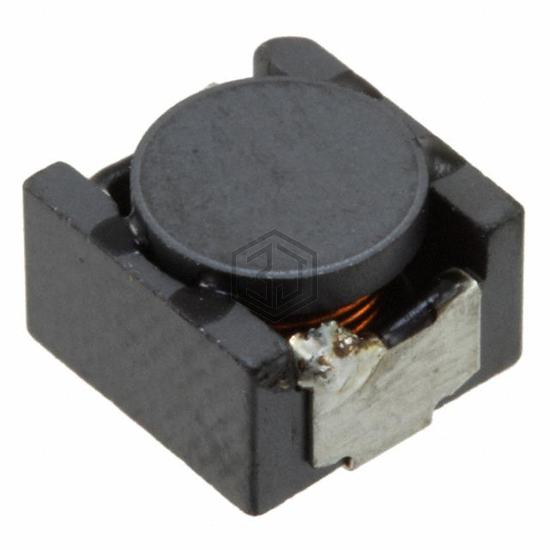

RLF7045T-6R8N2R3-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 2.3A 43.2MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 2.3 A.
In Stock: 968
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 43.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for RLF7045T-6R8N2R3-D and get a quote within 24 hours.
