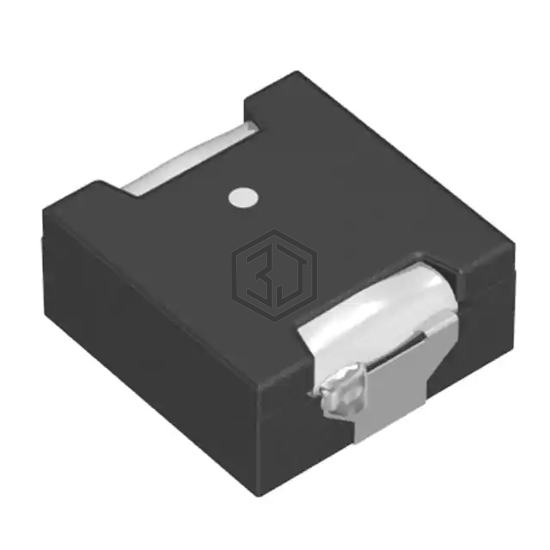

FIXED IND 1UH 14.4A 3.36MOHM SMD
RLF12560T-1R0N140 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1UH 14.4A 3.36MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 14.4 A.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 14.4 A |
| Current - Saturation (Isat) | 18.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.492" W (12.80mm x 12.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for RLF12560T-1R0N140 and get a quote within 24 hours.
