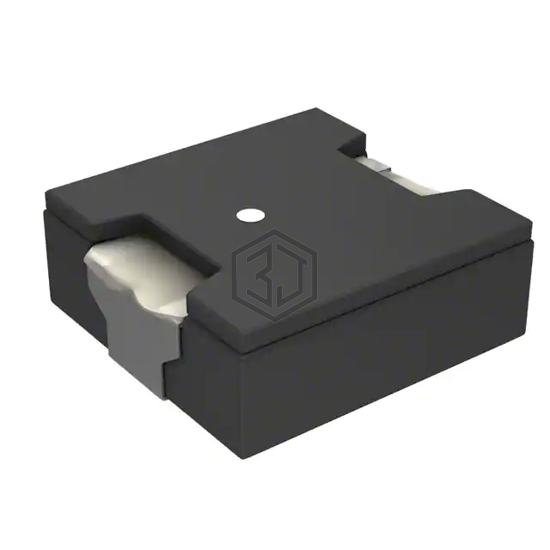

FIXED IND 2.7UH 8.7A 5.4MOHM SMD
RLF12545T-2R7N8R7-PF is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.7UH 8.7A 5.4MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 8.7 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 8.7 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.492" W (12.80mm x 12.50mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for RLF12545T-2R7N8R7-PF and get a quote within 24 hours.
