FIXED IND 150UH 900MA 332.4 MOHM

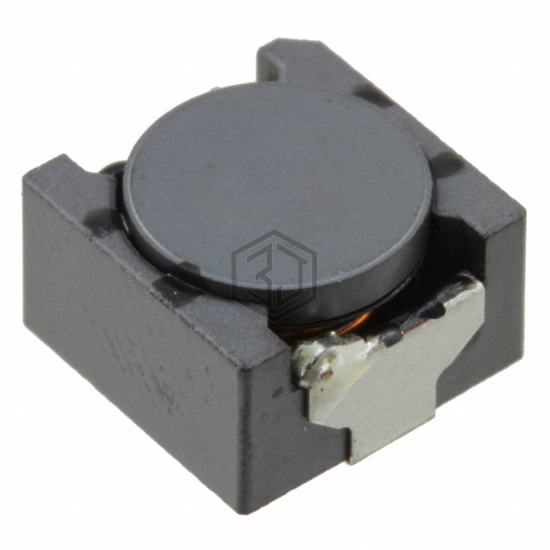

RLF10160T-151MR90-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 150UH 900MA 332.4 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 263
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 332.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
