INDUCTOR/XFRMR 7.9UH MULTIWIND

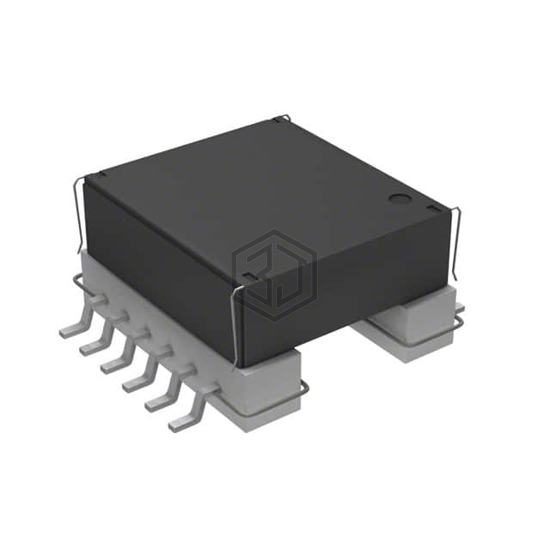

PCA15EFD-U09S003 is a Switching Converter, SMPS Transformers manufactured by TDK Corporation. INDUCTOR/XFRMR 7.9UH MULTIWIND. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, size / dimension 0.713" L x 0.630" W (18.10mm x 16.00mm).
In Stock: 9,205
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Configurable (For DC/DC) |
| Applications | Capacitor Charger |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | - |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 500Vrms |
| Inductance @ Frequency | Parallel 7.9µH @ 10kHz, Series 286µH @ 10kHz |
| Frequency | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.713" L x 0.630" W (18.10mm x 16.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Footprint | 0.713" L x 0.886" W (18.10mm x 22.50mm) |
| Style | - |
Submit your RFQ for PCA15EFD-U09S003 and get a quote within 24 hours.
