FIXED IND 22UH 170MA 460MOHM SMD

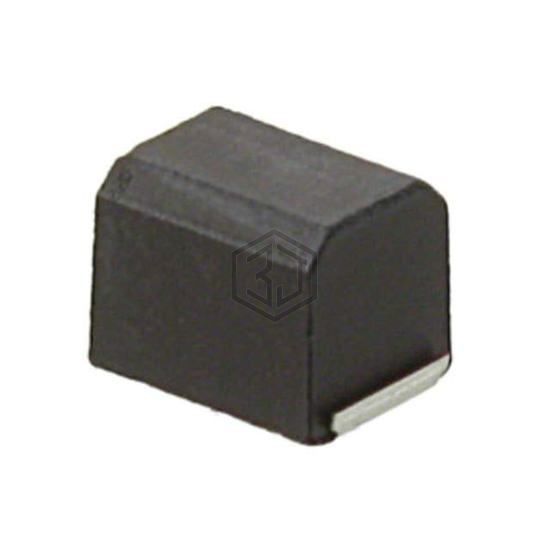

NLFC453232T-220K-PF is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 22UH 170MA 460MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 1812 (4532 Metric), current rating (amps) 170 mA.
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 460mOhm |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for NLFC453232T-220K-PF and get a quote within 24 hours.
