FIXED IND 8.2UH 750MA 180MOHM SM

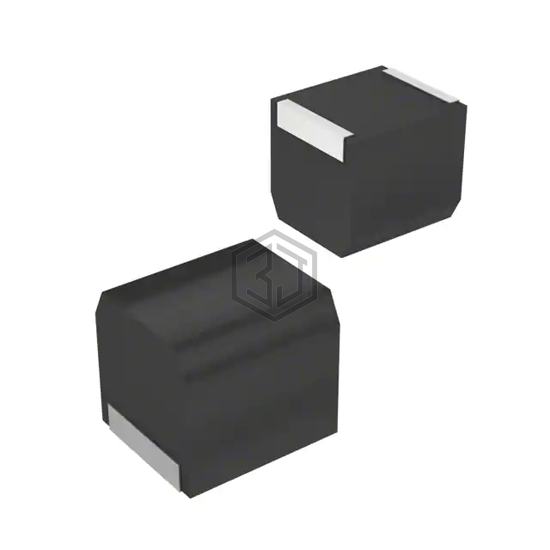

NLC565050T-8R2K-PF is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 8.2UH 750MA 180MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 2220 (5650 Metric), current rating (amps) 750 mA.
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 8.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 22MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
