FIXED IND 39UH 370MA 720MOHM SMD

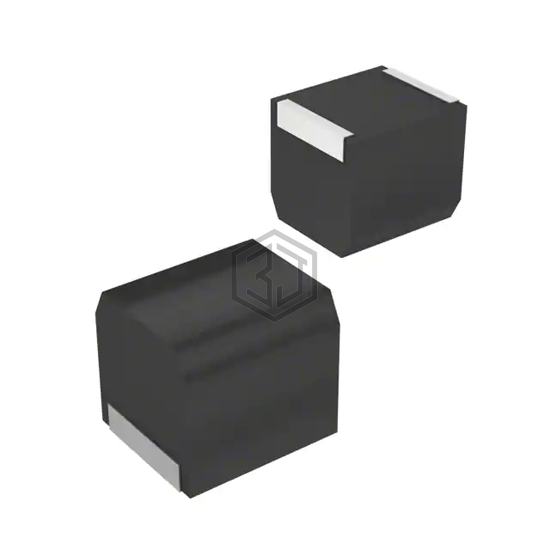

NLC565050T-390K-PF is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 39UH 370MA 720MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 2220 (5650 Metric), current rating (amps) 370 mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 39 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 370 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 720mOhm Max |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 9.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Submit your RFQ for NLC565050T-390K-PF and get a quote within 24 hours.
