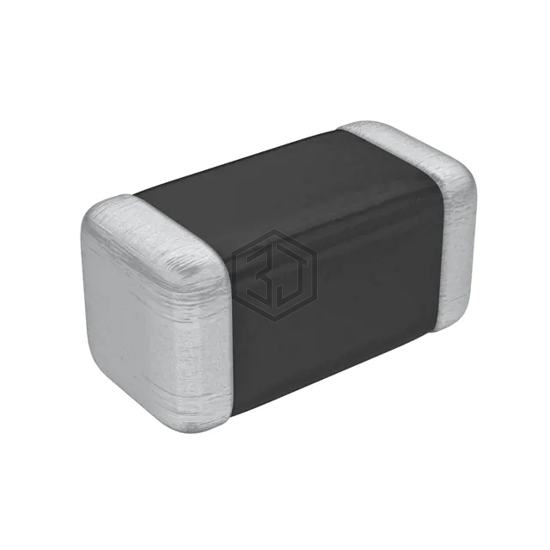

FIXED IND 1UH 600MA 150 MOHM SMD
MLZ1608A1R0MT000 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1UH 600MA 150 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 600 mA.
In Stock: 44,978
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 190mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 150mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 120MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for MLZ1608A1R0MT000 and get a quote within 24 hours.
