FIXED IND 1.5NH 500MA 150MOHM SM

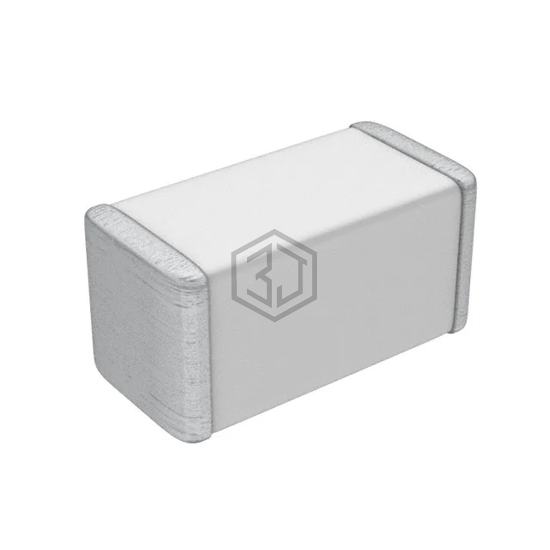

MLK1005S1N5STD25 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.5NH 500MA 150MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 500 mA.
In Stock: 13,410
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Multilayer |
| Material - Core | Non-Magnetic |
| Inductance | 1.5 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 6 @ 100MHz |
| Frequency - Self Resonant | 9.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for MLK1005S1N5STD25 and get a quote within 24 hours.
