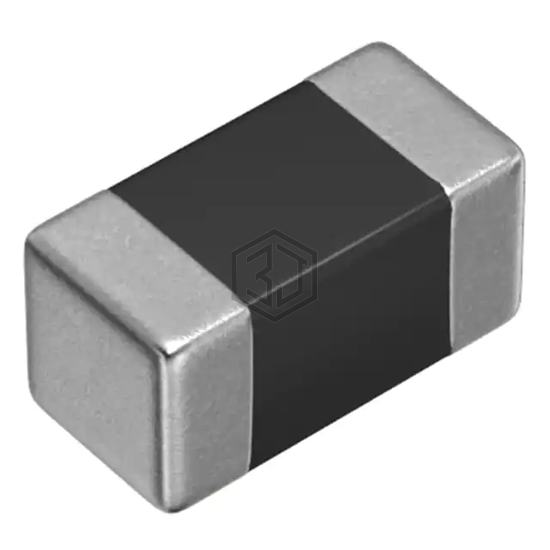

FIXED IND 75NH 550MA 250MOHM SMD
MLJ1005W75NJT000 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 75NH 550MA 250MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 550 mA.
In Stock: 16,362
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 75 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 15 @ 25MHz |
| Frequency - Self Resonant | 650MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for MLJ1005W75NJT000 and get a quote within 24 hours.
