FIXED IND 1.2UH 35MA 790MOHM SMD

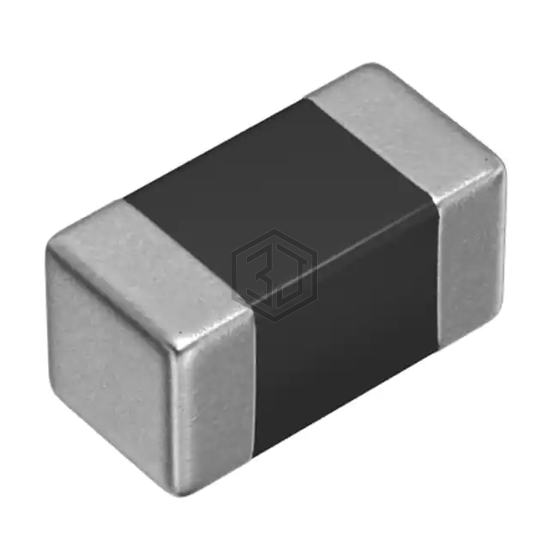

MLF1005L1R2KT000 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.2UH 35MA 790MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0402 (1005 Metric), current rating (amps) 35 mA.
In Stock: 709
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 35 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 790mOhm Max |
| Q @ Freq | 25 @ 10MHz |
| Frequency - Self Resonant | 110MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for MLF1005L1R2KT000 and get a quote within 24 hours.
