FIXED IND 4.3NH 400MA 350MOHM SM

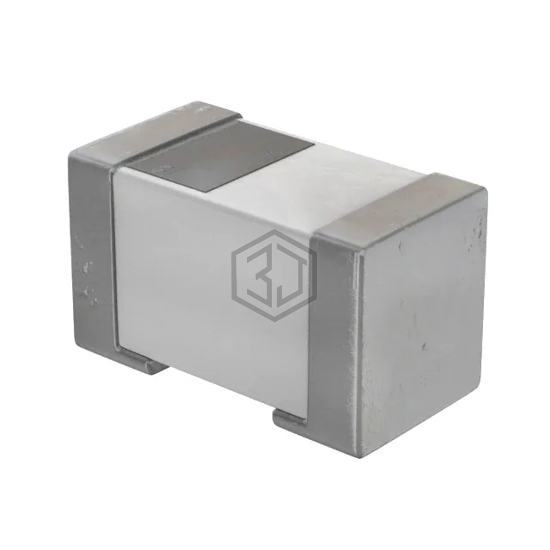

MHQ0603P4N3CT000 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.3NH 400MA 350MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0201 (0603 Metric), current rating (amps) 400 mA.
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 4.3 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 350mOhm Max |
| Q @ Freq | 16 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.026" L x 0.014" W (0.65mm x 0.35mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
Submit your RFQ for MHQ0603P4N3CT000 and get a quote within 24 hours.
