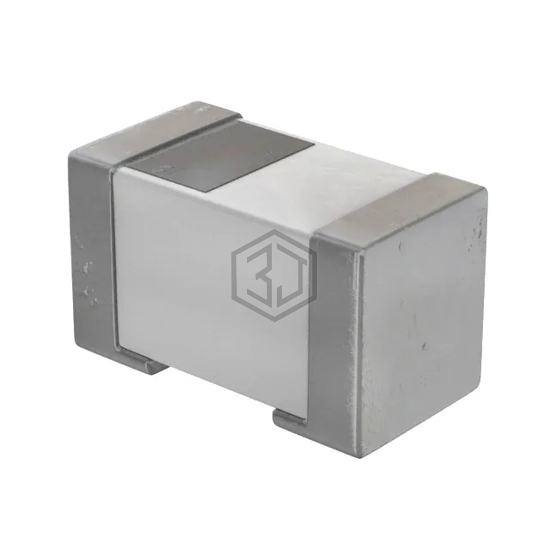

FIXED IND 0.9NH 600MA 150MOHM SM
MHQ0402PSA0N9CT000 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 0.9NH 600MA 150MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 01005 (0402 Metric), current rating (amps) 600 mA.
In Stock: 4,326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 0.9 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 10 @ 500MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.009" (0.22mm) |
Submit your RFQ for MHQ0402PSA0N9CT000 and get a quote within 24 hours.
