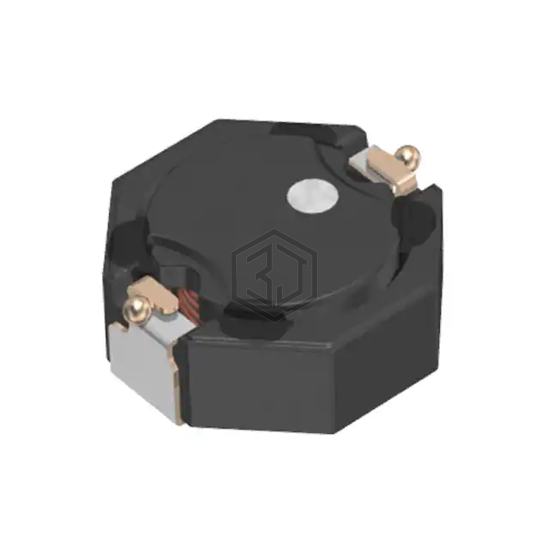

FIXED IND 1.2UH 3.4A 31 MOHM SMD
LTF5022T-1R2N3R4-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.2UH 3.4A 31 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 3.4 A.
In Stock: 624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 3.87A |
| Shielding | Shielded |
| DC Resistance (DCR) | 31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.197" W (6.50mm x 5.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for LTF5022T-1R2N3R4-D and get a quote within 24 hours.
