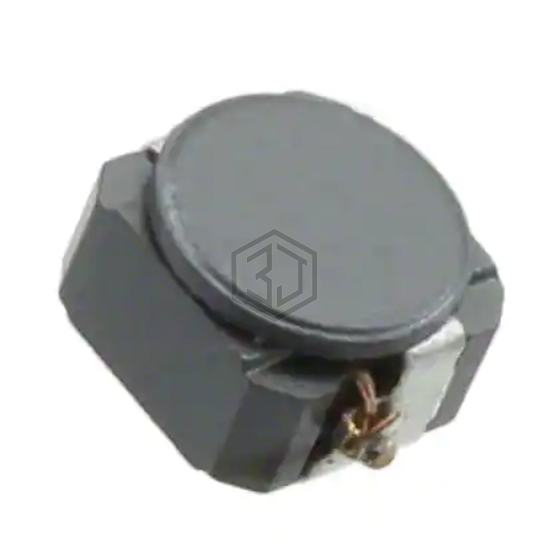

FIXED IND 1.2UH 1.91A 53MOHM SMD
LTF3020T-1R2N-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.2UH 1.91A 53MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.91 A.
In Stock: 1,311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.91 A |
| Current - Saturation (Isat) | 1.52A |
| Shielding | Shielded |
| DC Resistance (DCR) | 53mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.118" W (4.50mm x 3.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
