FIXED IND 15UH 680MA 380MOHM SMD

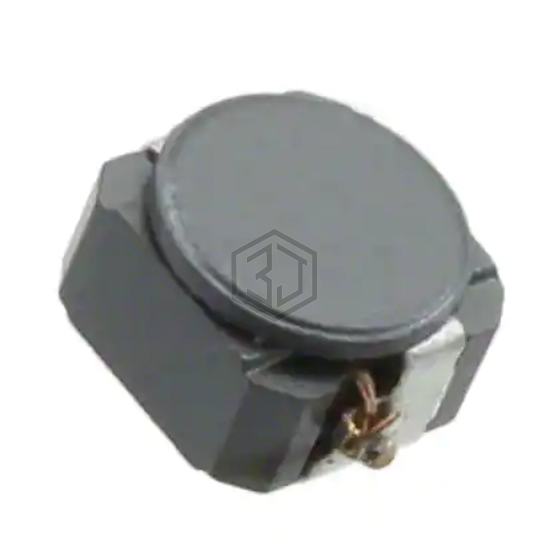

LTF3020T-150M-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 15UH 680MA 380MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 680 mA.
In Stock: 781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | 490mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 380mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.118" W (4.50mm x 3.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
