FIXED IND 4.7UH 3.6A 20 MOHM SMD

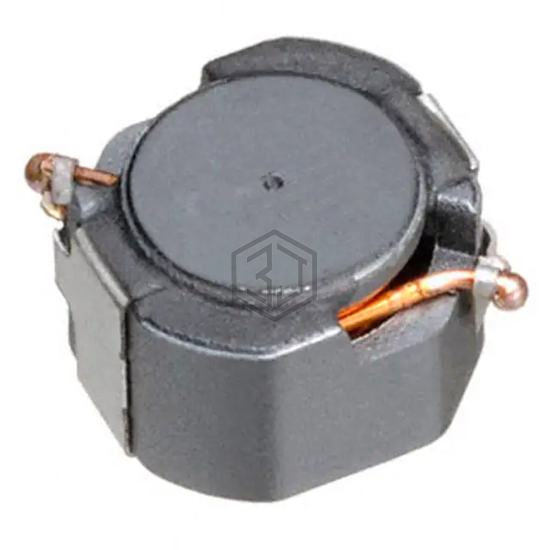

LGJ7045TC-4R7N-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.7UH 3.6A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.6 A.
In Stock: 466
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.6 A |
| Current - Saturation (Isat) | 4.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for LGJ7045TC-4R7N-H and get a quote within 24 hours.
