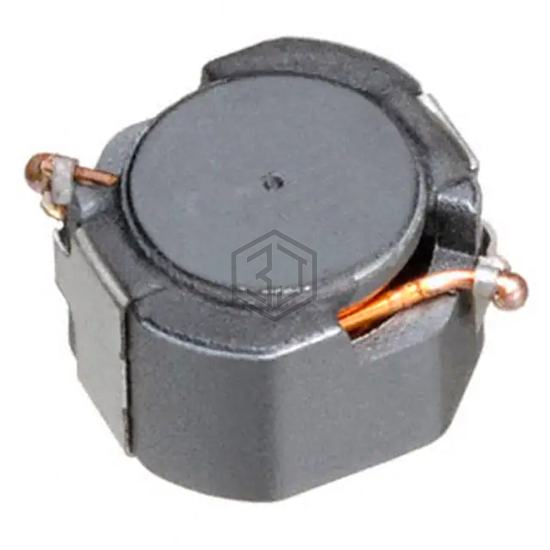

FIXED IND 330UH 420MA 1.03OHM SM
LGJ7045TC-331M-D is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 330UH 420MA 1.03OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 420 mA.
In Stock: 920
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | 490mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.03Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for LGJ7045TC-331M-D and get a quote within 24 hours.
