FIXED IND 5.6UH 6.3A 11.6MOHM SM

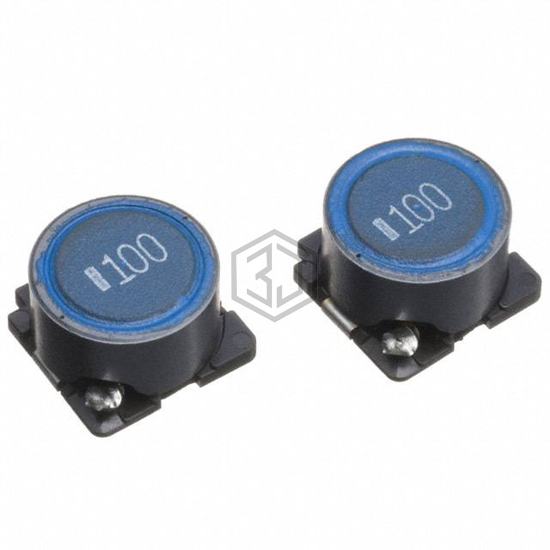

LGJ12575TS-5R6N6R3-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 5.6UH 6.3A 11.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.3 A.
In Stock: 185
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.3 A |
| Current - Saturation (Isat) | 7.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
