FIXED IND 470UH 750MA 770MOHM SM

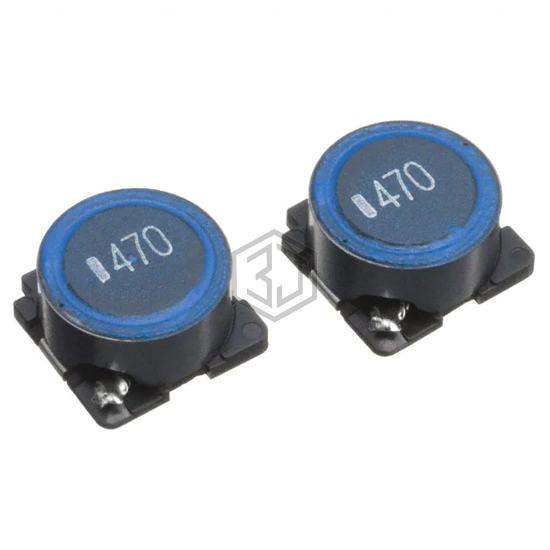

LGJ12565TS-471MR70-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 470UH 750MA 770MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 750 mA.
In Stock: 373
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | 700mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 770mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for LGJ12565TS-471MR70-H and get a quote within 24 hours.
