FIXED IND 1MH 290MA 2.8 OHM SMD

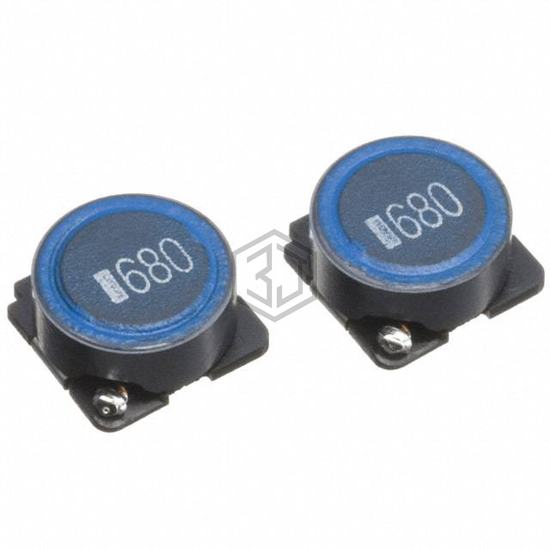

LGJ10145TS-102MR29-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1MH 290MA 2.8 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 290 mA.
In Stock: 378
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 290 mA |
| Current - Saturation (Isat) | 320mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.8Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
