CMC 7.5UH 4A 2LN SMD AEC-Q200

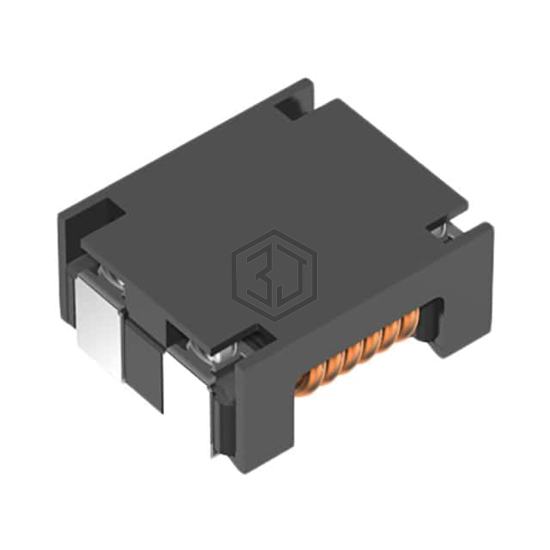

LCV70-701-2PL-TL00 is a Common Mode Chokes manufactured by TDK Corporation. CMC 7.5UH 4A 2LN SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 80V, package / case Horizontal, 4 PC Pad.
In Stock: 15,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 700 Ohms @ 100 MHz |
| Inductance @ Frequency | 7.5 µH @ 1 MHz |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 15mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Height (Max) | 0.138" (3.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for LCV70-701-2PL-TL00 and get a quote within 24 hours.
