INDUCTOR/XFRMR

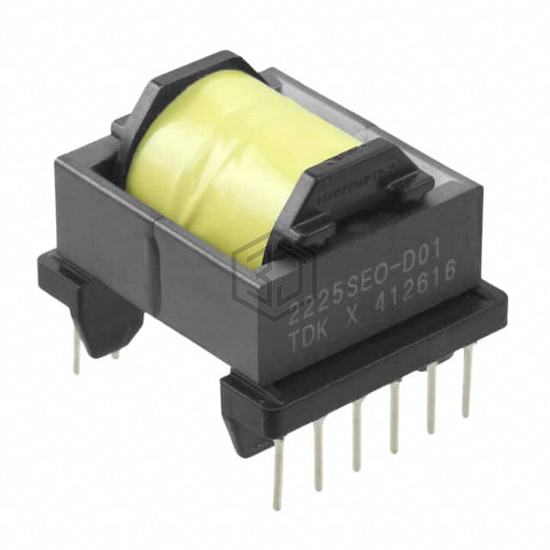

ECO2225SEO-D01H016 is a Switching Converter, SMPS Transformers manufactured by TDK Corporation. INDUCTOR/XFRMR. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 120°C, size / dimension 1.024" L x 1.201" W (26.00mm x 30.50mm), frequency 67kHz.
In Stock: 6,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 85 ~ 276V |
| Voltage - Auxiliary | 12V @ 50mA, 12V @ 1.5A |
| Voltage - Isolation | 3000Vrms |
| Inductance @ Frequency | 567µH @ 10kHz |
| Frequency | 67kHz |
| Operating Temperature | -30°C ~ 120°C |
| Mounting Type | Through Hole |
| Size / Dimension | 1.024" L x 1.201" W (26.00mm x 30.50mm) |
| Height - Seated (Max) | 0.945" (24.00mm) |
| Footprint | 1.024" L x 1.201" W (26.00mm x 30.50mm) |
| Style | - |
Submit your RFQ for ECO2225SEO-D01H016 and get a quote within 24 hours.
