FIXED IND 3.3UH 4.1A 21.32 MOHM

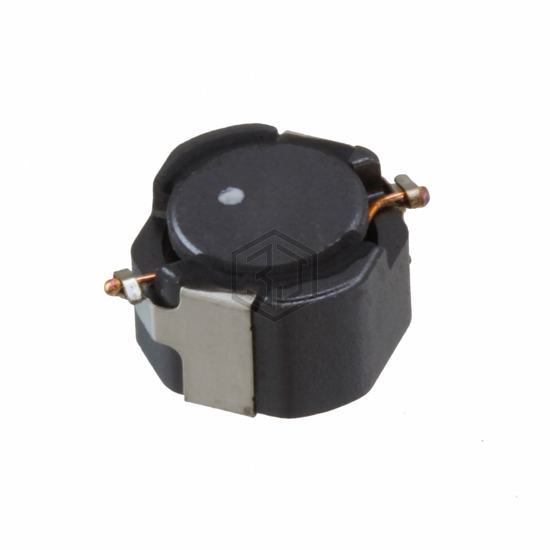

CLF7045T-3R3N-CA is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 3.3UH 4.1A 21.32 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 4.1 A.
In Stock: 888
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.1 A |
| Current - Saturation (Isat) | 5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 21.32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for CLF7045T-3R3N-CA and get a quote within 24 hours.
