FIXED IND 2.2UH 4.3A 18.98 MOHM

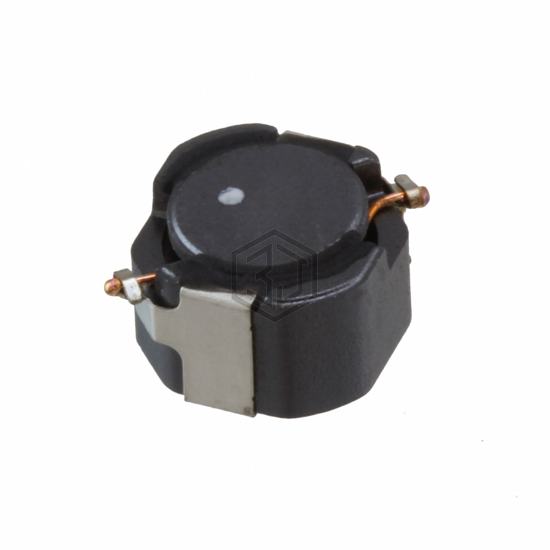

CLF7045T-2R2N-CA is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.2UH 4.3A 18.98 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 4.3 A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.98mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for CLF7045T-2R2N-CA and get a quote within 24 hours.
