FIXED IND 1UH 7.5A 5.8 MOHM SMD

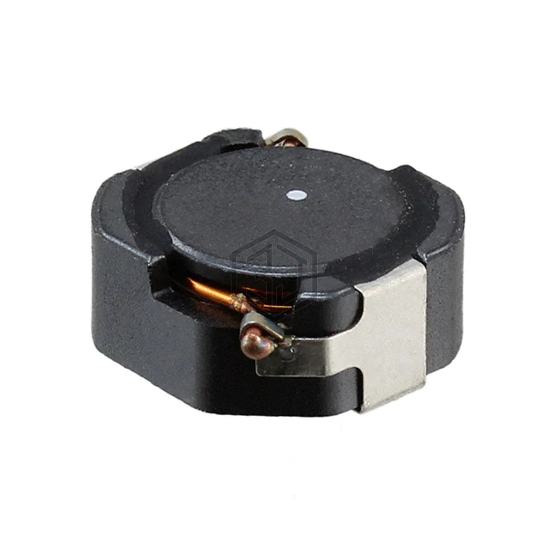

CLF12555T-1R0N is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1UH 7.5A 5.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.5 A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 7.5 A |
| Current - Saturation (Isat) | 20A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.476" W (12.50mm x 12.10mm) |
| Height - Seated (Max) | 0.230" (5.85mm) |
Submit your RFQ for CLF12555T-1R0N and get a quote within 24 hours.
