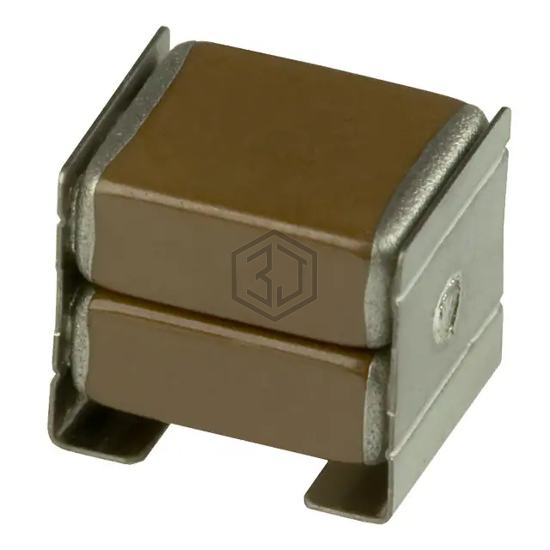

CAP CER 6.8UF 100V X7S SMD
CKG45NX7S2A685M500JJ is a Ceramic Capacitors manufactured by TDK Corporation. CAP CER 6.8UF 100V X7S SMD. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 100V, package / case Stacked SMD, 2 J-Lead.
In Stock: 5,650
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| Temperature Coefficient | X7S |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (Stacked) |
| Ratings | AEC-Q200 |
| Applications | Automotive, SMPS Filtering, Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | Stacked SMD, 2 J-Lead |
| Size / Dimension | 0.197" L x 0.138" W (5.00mm x 3.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.217" (5.50mm) |
| Lead Spacing | - |
| Lead Style | J-Lead |
CKG45NX7S2A685M500JJ is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KTS101B685M55F0T00 | United Chemi-Con | CAP CER 6.8UF 100V X7R 2220 | 100% | View |
| KTJ101B685M76AFT00 | United Chemi-Con | CAP CER 6.8UF 100V X7R SMD | 100% | View |
| KTS101B685K55F0T00 | United Chemi-Con | CAP CER 6.8UF 100V X7R 2220 | 100% | View |
| CGA4J1X7R0J685K125AC | TDK Corporation | CAP CER 6.8UF 6.3V X7R 0805 | 56% | View |
| 2225Y0160685KXR | Knowles Syfer | CAP CER 6.8UF 16V X7R 2225 | 56% | View |
| 2225J0100685MXR | Knowles Syfer | CAP CER 6.8UF 10V X7R 2225 | 56% | View |
Submit your RFQ for CKG45NX7S2A685M500JJ and get a quote within 24 hours.
