CAP CER 0.22UF 630V X7R SMD

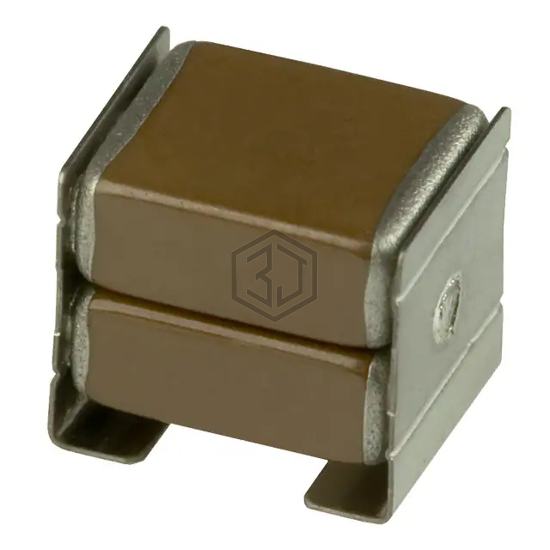

CKG45NX7R2J224M500JJ is a Ceramic Capacitors manufactured by TDK Corporation. CAP CER 0.22UF 630V X7R SMD. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 630V, package / case Stacked SMD, 2 J-Lead.
In Stock: 6,063
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 630V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (Stacked) |
| Ratings | AEC-Q200 |
| Applications | Automotive, SMPS Filtering, Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | Stacked SMD, 2 J-Lead |
| Size / Dimension | 0.197" L x 0.138" W (5.00mm x 3.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.217" (5.50mm) |
| Lead Spacing | - |
| Lead Style | J-Lead |
CKG45NX7R2J224M500JJ is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C1206C224J3JACAUTO | KEMET | CAP CER 0.22UF 25V U2J 1206 | 56% | View |
| 08051C224K4T2A | KYOCERA AVX | CAP CER 0.22UF 100V X7R 0805 | 56% | View |
| GMC10X7R224J16NT | CAL-CHIP ELECTRONICS, INC. | CAP CER 0.22UF 16V X7R 0603 | 56% | View |
| 1825Y0250224GCR | Knowles Syfer | CAP CER 0.22UF 25V C0G/NP0 1825 | 56% | View |
| 1825Y0250224FCR | Knowles Syfer | CAP CER 0.22UF 25V C0G/NP0 1825 | 56% | View |
| GA1210Y224JBAAR31G | Vishay Vitramon | CAP CER 0.22UF 50V X7R 1210 | 56% | View |
Submit your RFQ for CKG45NX7R2J224M500JJ and get a quote within 24 hours.
