CAP CER 6.8UF 50V X7R SMD

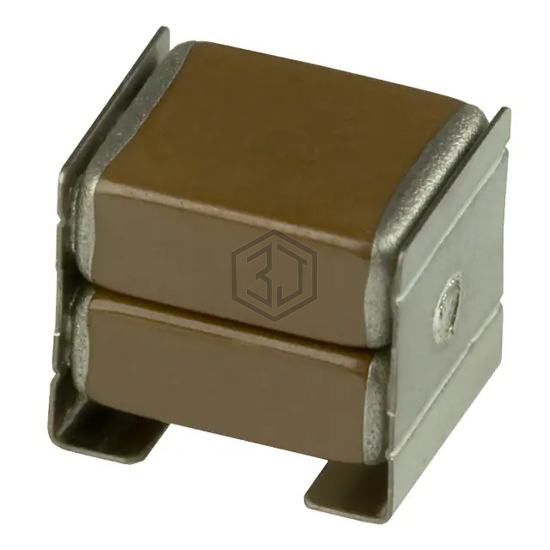

CKG45NX7R1H685M500JJ is a Ceramic Capacitors manufactured by TDK Corporation. CAP CER 6.8UF 50V X7R SMD. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 50V, package / case Stacked SMD, 2 J-Lead.
In Stock: 1,247
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (Stacked) |
| Ratings | AEC-Q200 |
| Applications | Automotive, SMPS Filtering, Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | Stacked SMD, 2 J-Lead |
| Size / Dimension | 0.197" L x 0.138" W (5.00mm x 3.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.217" (5.50mm) |
| Lead Spacing | - |
| Lead Style | J-Lead |
CKG45NX7R1H685M500JJ is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GMC55X7R685K50NT | CAL-CHIP ELECTRONICS, INC. | CAP CER 6.8UF 50V X7R 2220 | 100% | View |
| CKG32KX7S1H685K335AH | TDK Corporation | CAP CER 6.8UF 50V X7S SMD | 100% | View |
| C1210C685K3RAL7800 | KEMET | CAP CER 6.8UF 25V X7R 1210 | 56% | View |
| CGA5L1X7R1E685K160AC | TDK Corporation | CAP CER 6.8UF 25V X7R 1206 | 56% | View |
| CGA4J1X7S1C685K125AC | TDK Corporation | CAP CER 6.8UF 16V X7S 0805 | 56% | View |
| 2225J0160685MDT | Knowles Syfer | CAP CER 6.8UF 16V X7R 2225 | 56% | View |
