INDUCTORS FOR DECOUPLING CIRCUIT

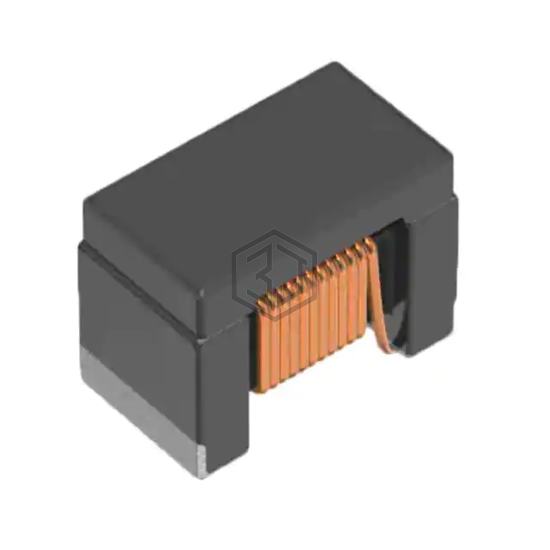

ADL2012-2R2M-T01 is a Fixed Inductors manufactured by TDK Corporation. INDUCTORS FOR DECOUPLING CIRCUIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 550 mA.
In Stock: 7,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 360MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.087" L x 0.049" W (2.20mm x 1.25mm) |
| Height - Seated (Max) | 0.069" (1.75mm) |
Submit your RFQ for ADL2012-2R2M-T01 and get a quote within 24 hours.
